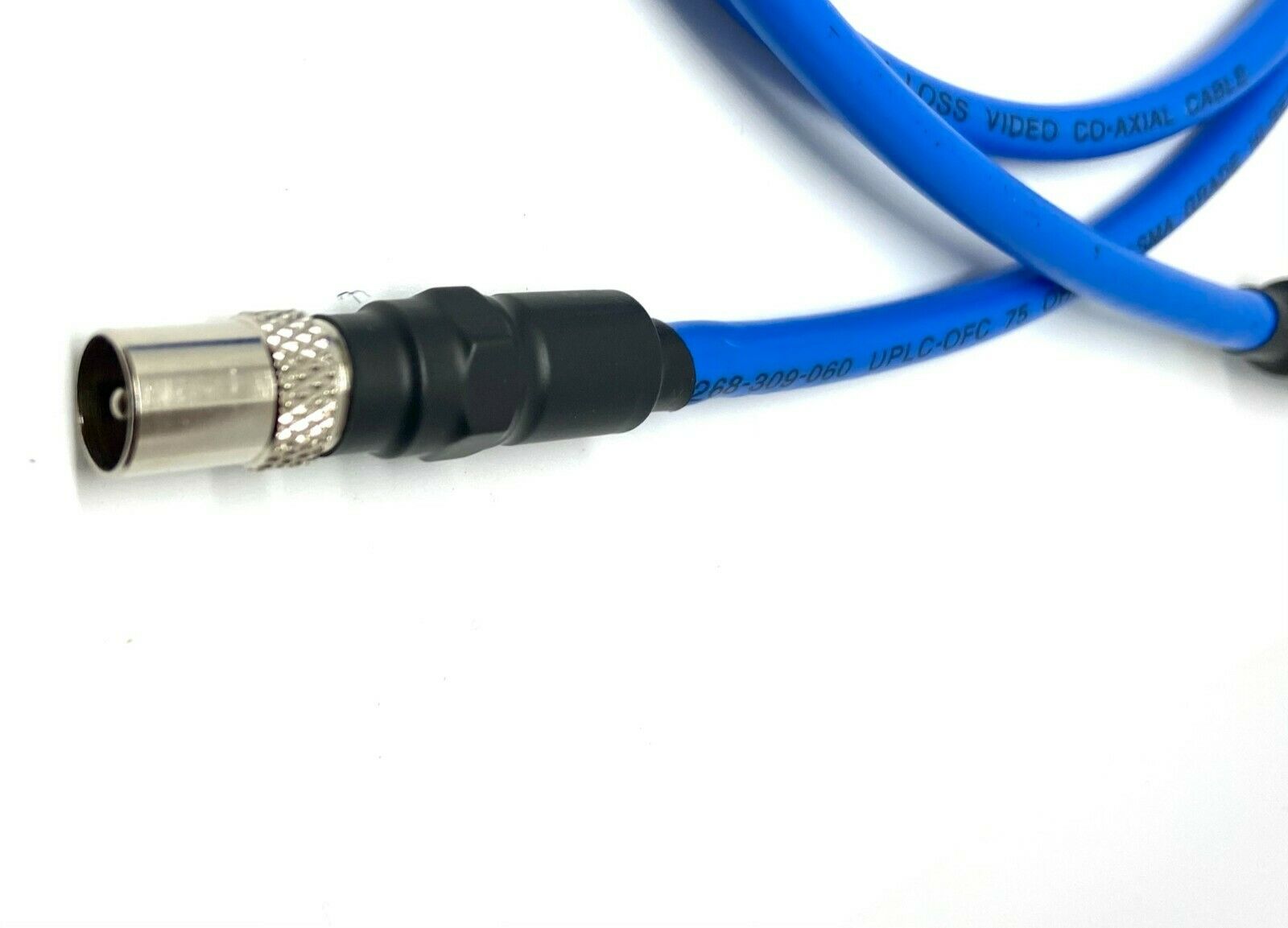

Premium TV Aerial Lead. 75ohm Van Damme Coax cable. Male to Male, Featuring Triax Aerial Connectors!
VAN DAMME STANDARD 75 OHM PLASMA GRADE COAX
These are hand built with Triax crimp connectors, F-Type Plug and Shrink Wrapped.
All fully tested before dispatch.
Van Damme Standard 75 Ohm Plasma Grade Video Coax is a high-resolution cable designed for use with analogue video signals. Precision performance is combined with flexibility usually only found in microphone cables resulting in an excellent video cable for dynamic use in the broadcast, video and presentation markets.
Mechanical Specification Conductor 7 x 0.20 mm bare ultra-pure oxygen-free copper Conductor size 7 x 0.20 mm, 0.22 mm2 , AWG 24/7 Dielectric Polyethylene Diameter 3.70 ± 0.10 mm Screen 16 x 9 x 0.12 mm bare braided oxygen free copper, < 95% coverage Overall Jacket Flexible PVC Overall diameter 6.10 ± 0.15 mm Bend Radius 15 x overall diameter Operating temperature -15 to + 70 ⁰C Electrical Specification Impedance 75 ± 3 Ohms Conductor Resistance < 85 Ohm/km Capacitance 67 pF/m Velocity of Propagation 66% Attenuation (dB/100m) 10 MHz 4.21 135 MHz 15.08 180 MHz 17.42 200 MHz 18.36 400 MHz 28.11 743 MHz 38.31
