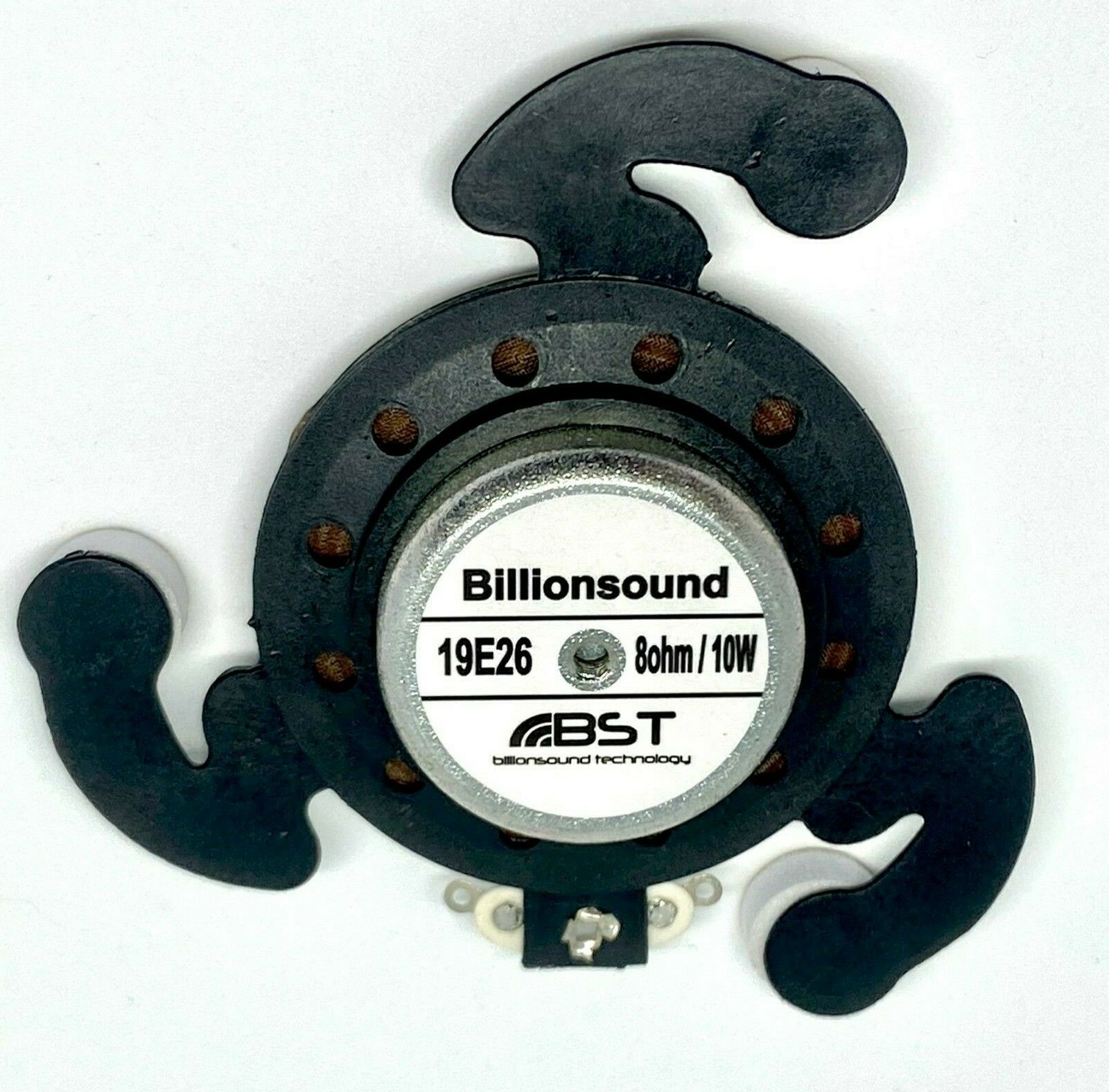

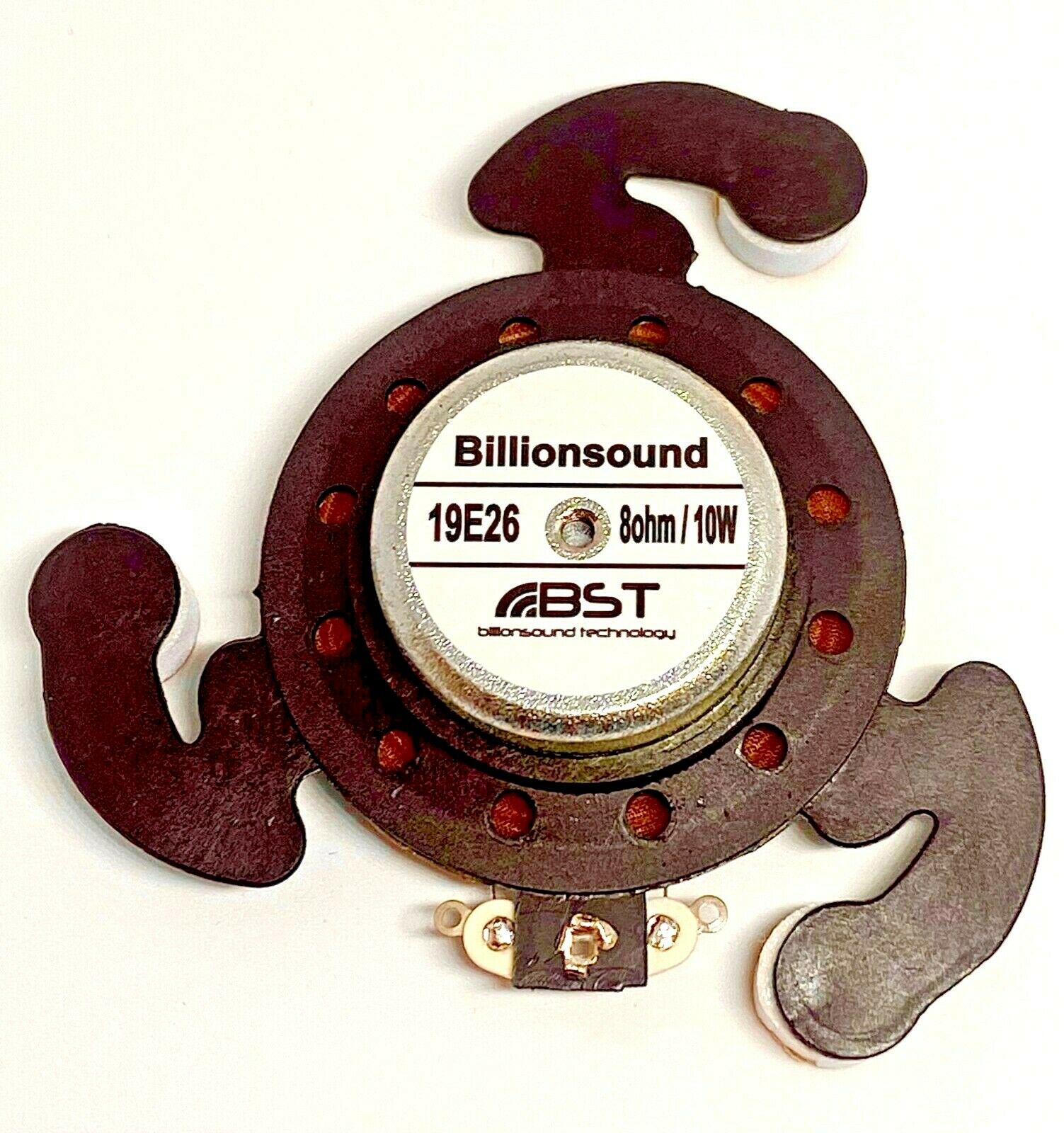

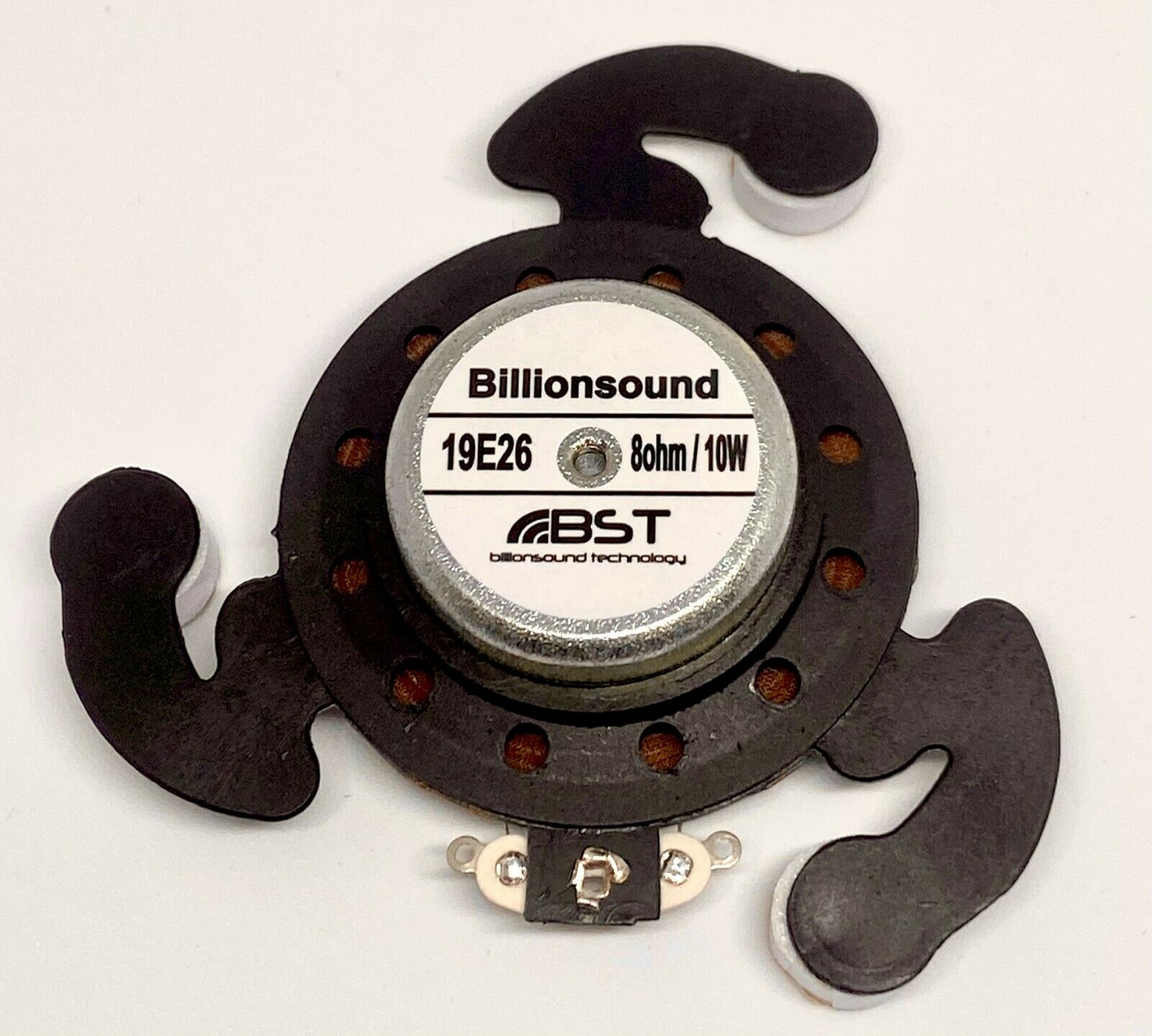

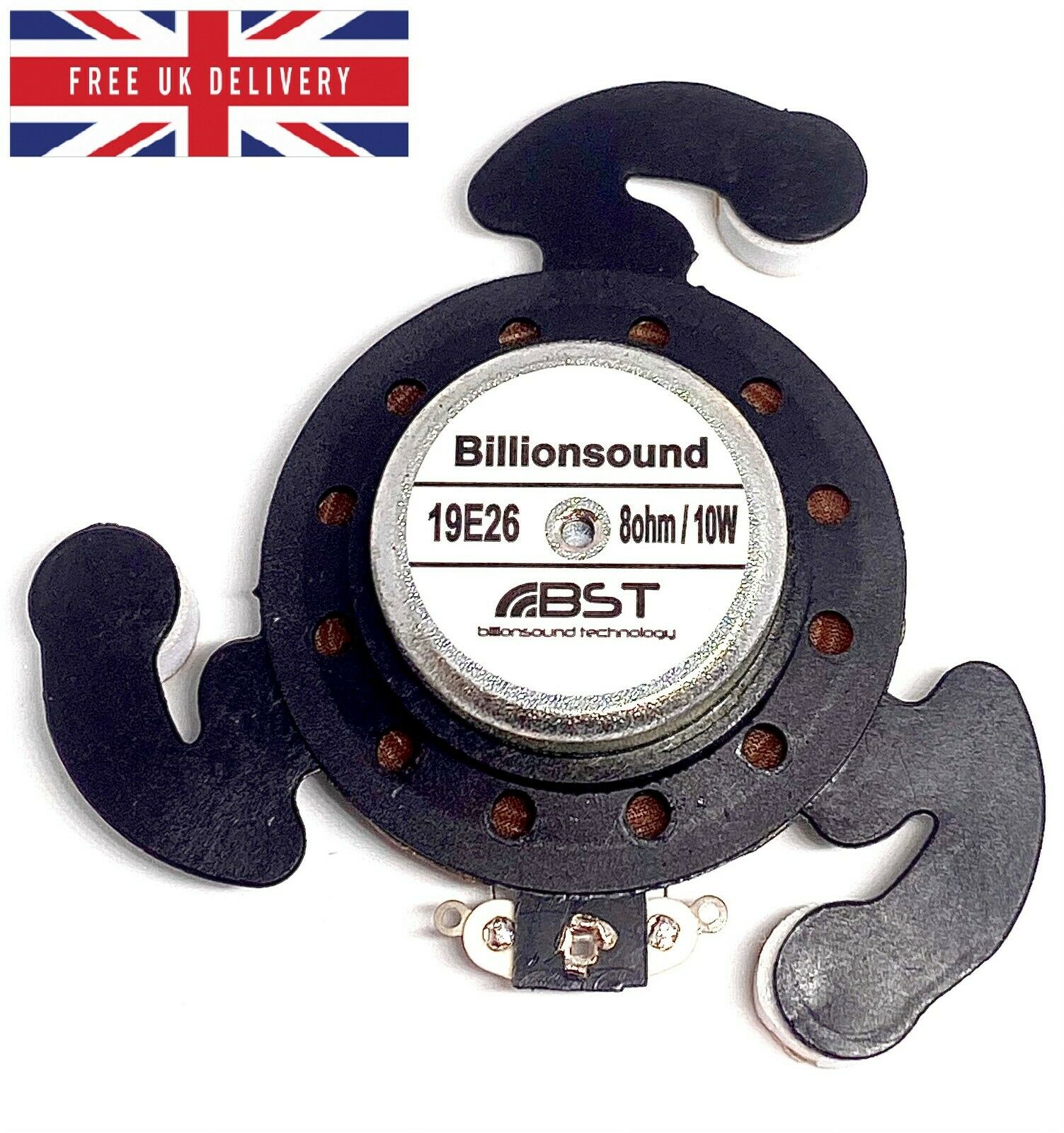

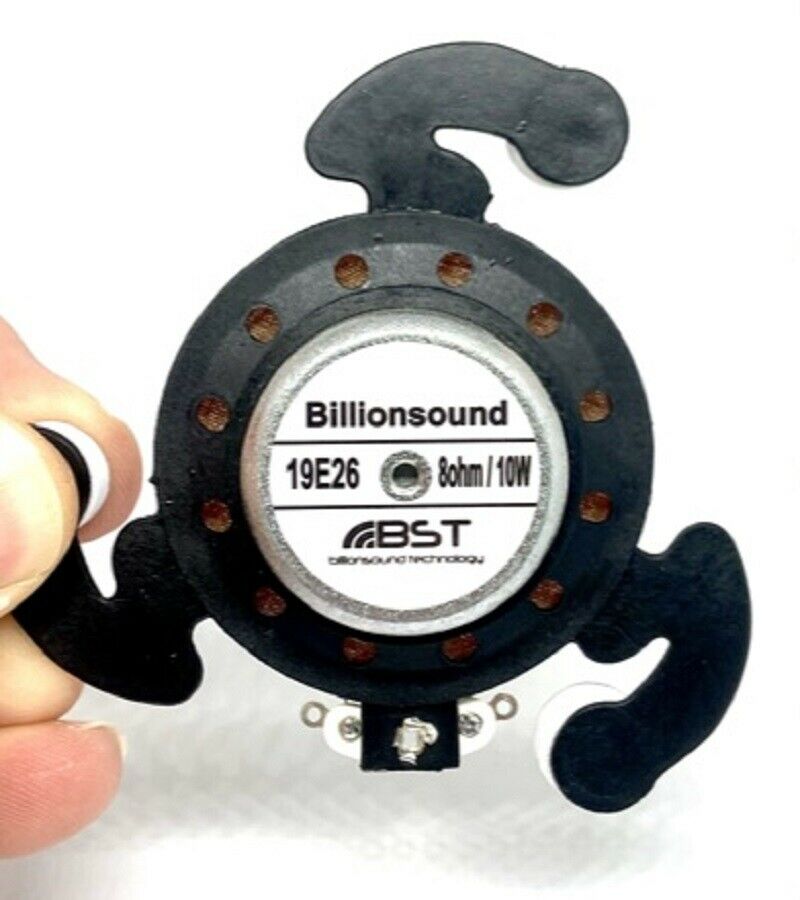

Energize Audio By BST 19E26 Tripod 25mm Exciter 10W 8 Ohm

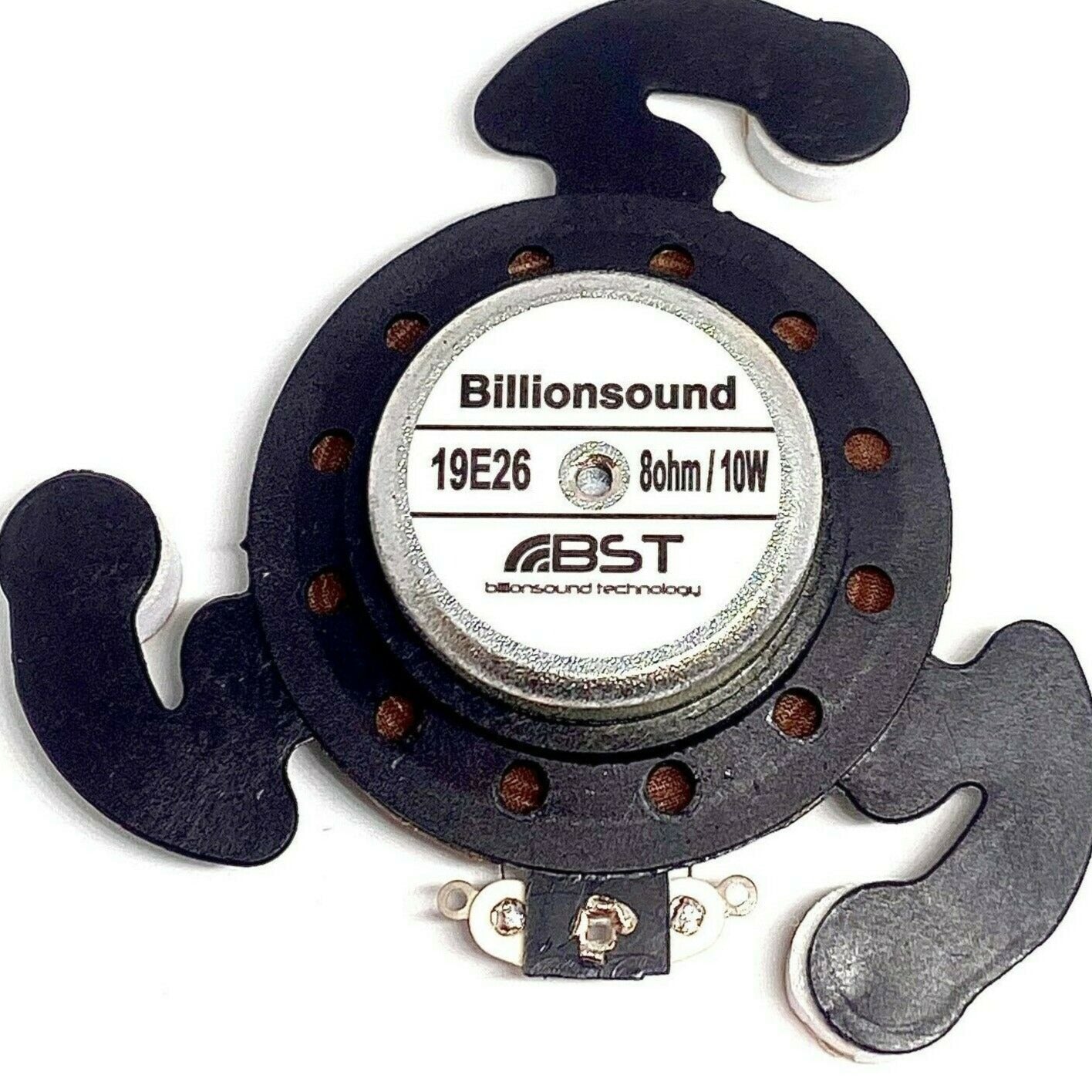

For turning larger surfaces into speakers, and more bass output, Energize Audio's 19E26 by billion sound's Tripod 25mm Exciter 10W 8 Ohm features three extended arms. Cooling vents draw air across the proprietary voice coil for higher power handling.
Highlights
- Unique, three arm design for exciting a large surface

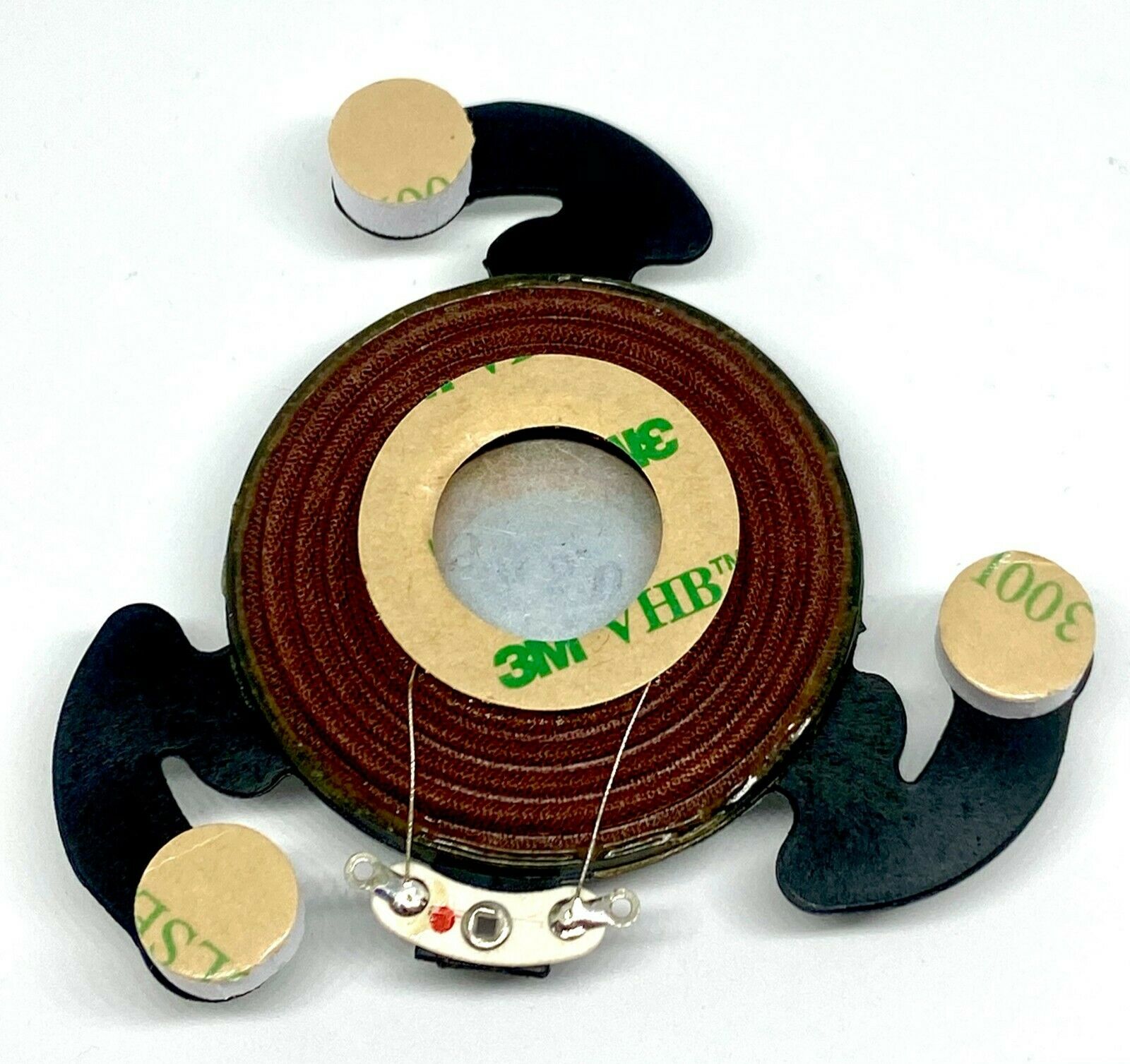

- Pre-applied 3M™ VHB™ adhesive for quick, secure installation
- Rare-earth neodymium motor and a proprietary voice coil
- 8-ohm impedance for use with small, Class D amplifiers
- 10 watt RMS power handling for high output
Product Details
Energize Audio 19E26 by billion sound's Exciter 10W 8 Ohm
|

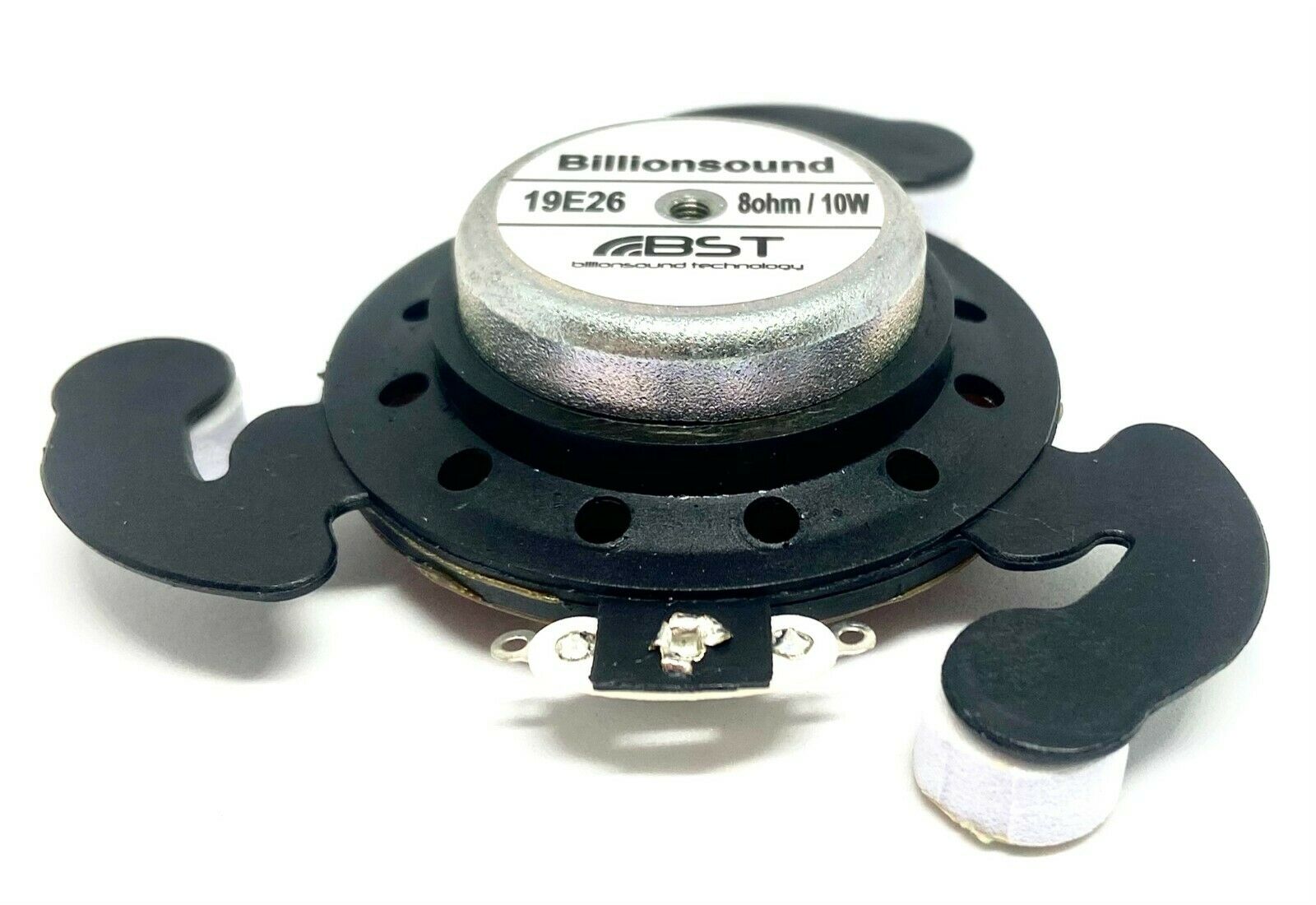

Energize Audio's 19E26 by billion sound tripod exciter is built with three arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms ... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
|
